How is Water Underfloor Heating installed?
There are several ways to install the flexible pipework depending on your project needs. We offer various methods to ensure correct pipe spacings are maintained to enable your desired heat output.
Clip Track
The Clip Track system comes in 1m lengths and provides vertical clips the pipe can be pressed into, keeping each coil the correct distance apart. The Clip Track can be secured to the PIR insulation or directly onto an insulated concrete base and covered with a screed.
View product
Staples
Our fixing Staples provide more flexibility on the pipe spacing. They are plastic U-shaped clips with barbed ends, which can be pressed directly into the PIR insulation to hold the pipework in whatever configuration is required.
View product
DUO Boards
Our DUO Boards are comprised of an EPS400 polystyrene board with a 200micron aluminium foil face to aid with heat distribution. The boards contain grooves pre-cut to 150mm spacings which the pipe is simply pressed into. The boards can be laid over an existing floor substrate and tiled directly over. Available in 16mm (12mm pipe) and 20mm (16mm pipe) depths.
View product
Egg Crate
The Egg Crate system provides great flexibility with pipe spacing and easy installation due to their design. They take the form of a plastic sheet with protrusions across the face that grip the Underfloor Heating pipes once pressed together. This system is available for 16mm pipe or 12mm pipe.
View product
Fastdeck
Fastwarm® FastDeck 22mm chipboard is grooved at 150mm centres to accept 12mm pipe and factory fitted with a 100-micron foil covering for even heat distribution suitable for applications over a suspended / joisted floor providing minimal floor build up.
View product

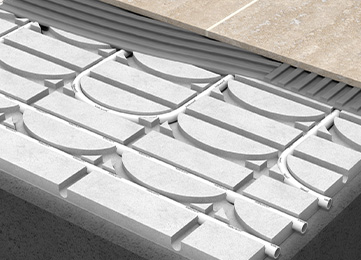

Gypsum Panels
Our Solid18 Gypsum Panels come pre-grooved at 150mm centres and offer an easy retrofit solution. The high-density dry screed board acts as a heat conductor to give excellent heat distribution.
View product
Spreader Plates
Our Spreader Plate solution enables the installation of Water Underfloor Heating pipes in between floor joists. The Spreader Plates are secured directly to the top of the floor joists and offer grooved channels to contain the underfloor heating pipe. With suitable insulation installed beneath, the Spreader Plates also offer even heat distribution to the floor above.
View product
FastTile+
The Fastwarm® FastTile+ solution comprises of a high compressive strength 200 kpa XPS underfloor heating insulation board and has a durable cement coating on either face, making it suitable for the direct application of tiles or covering with floor leveller, leaving the surface suitable for covering with all floor finishes.
View product
In-Joist Panels
The Fastwarm® in joist panels are the perfect solution to providing underfloor heating in a joisted scenario. The panels fix between existing joists onto battens on upper floors and can also be fitted between battens on concrete subfloors, giving you a fast and inexpensive solution for installing Fastwarm® underfloor heating pipework.
View productGet expert advice on Water Underfloor Heating systems.
